#Secco Sistemi

BV 75

The beveled angled shapes of the sash externally and the glazing bead internally, are symmetrical with the glass, perfectly centered on the frame, hence characterizing the frame by giving the external elevation the same depth and aesthetics as the internal one.The visible sections range from 27 to 62 mm, the thickness varies based on the type of opening, from 70 to 84 mm, with glazing up to 40 mm.

SYSTEM FEATURES

  1. glazing bead
  2. fitting groove of up to 40 mm
  3. internal and external overlap
  4. hardware fitting groove
  5. internal rebate gasket
  6. external shaping as the glazing bead
  7. external rebate gasket
  8. central flipper gasket
  9. composite structural thermal break polyurethane
  10. composite structural thermal break polyamide

GLAZING BEAD

The small profiles placed in front of the glass to fix it are also design elements of the frame and are produced in the same finishes as the window

squared

beveled

thin

rounded square

HINGES

To better integrate into the window frame, the hinges are slender, minimal and provided in the same finishes as the frame. In tilt and turn, the hinges can be concealed

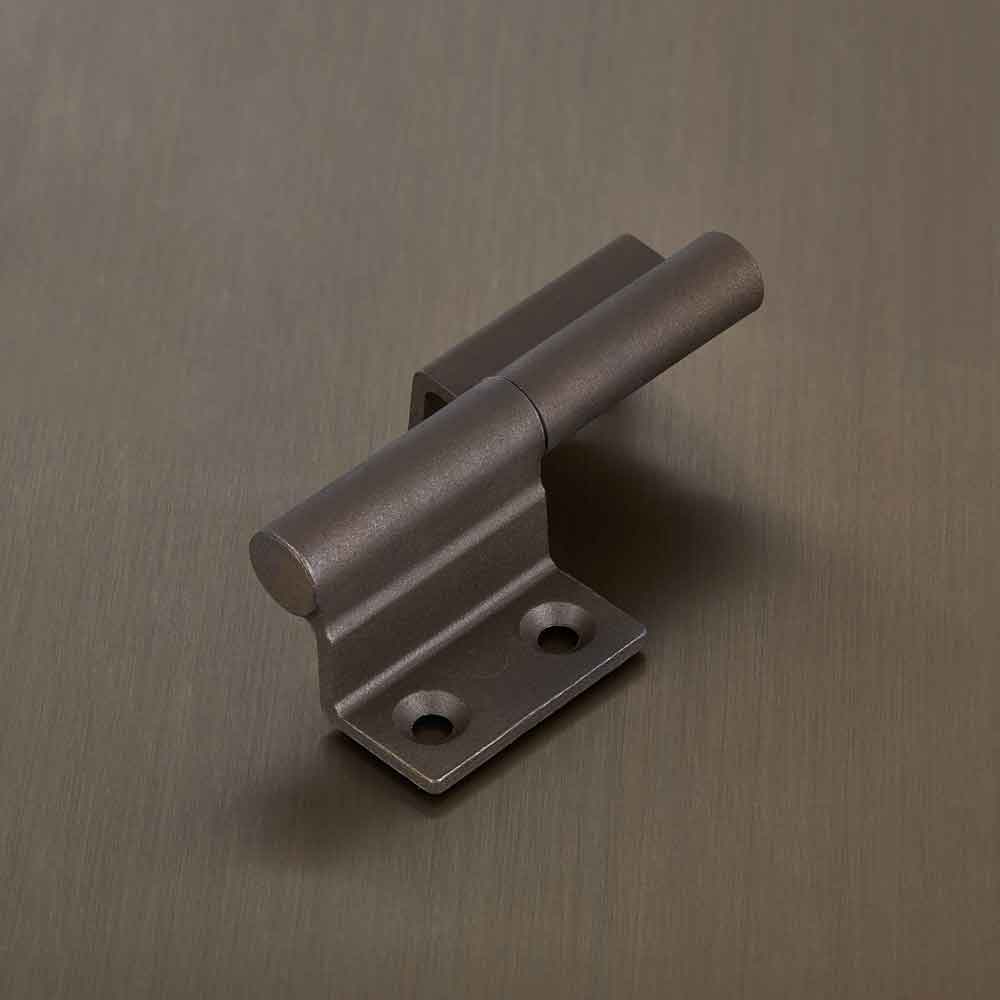

two-wing hinge stainless steel corten steel

three-wing hinge stainless steel corten steel

HANDLES

Discrete, geometric, minimal and in the same finishes as the frame, the handles integrate perfectly into the frame

vitruvio tronca stainless steel brass

vitruvio quadra stainless steel corten steel

vitruvio tonda stainless steel brass

vitruvio ovale stainless steel brass

MATERIALS

BV 75 is also available in 4 precious metals in the Bi-material combination, combining two different materials between the interior and the exterior

galvanized steel varnished

stainless steel scotch brite burnished

corten steel oxidized

brass natural burnished

TECHNICAL DATA & DOWNLOADS

Download supporting documents & brochures here
Downloads coming soon
